Atlas BP10000X 10,000 lbs Baseplate Lift

Original price was: $5,200.00.Current price is: $4,099.00.

Add to compare
Add to wishlist

Guaranteed Safe Checkout

Description

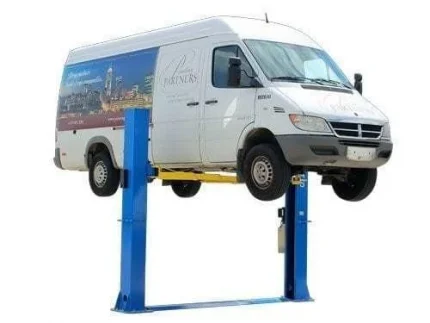

The Atlas BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns.

If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop.

Features & Benefits

  • 10,000 lb. Capacity
  • Commercial Grade
  • Baseplate, Open-Top Style Lift
  • Overall Height: 111 7/8″ (9′ 3 7/8″)
  • Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously
  • Super-Symmetric Arms
  • Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
  • Welded Support Gussets Increase Column Strength.
  • Automatic Arm Restraints
  • Powder Coat Finish
  • Free 12 Piece Truck Adapter Set
  • 5 yr Structural – 2 yr Hydraulic Warranty

Atlas ATTD-BP10000X Specifications

Capacity 10,000 lb.
Overall Height 111 7/8″ (9’ 3 7/8″)
Overall Floor Width 139 1/8″ (11’ 7 1/8″)
Outside Column to  Outside Column 134 1/2″ (11’ 2 1/2″)
Maximum Lift Height (Without Adapters) 77 3/8″
Maximum Lift Height (With Adapters) 86 3/8″
Minimum Arm Height 4″
Inside Column 112 1/4” (9’ 4 1/4”)
Drive Thru 101 1/4” (8’ 5 1/4”)
Column Size 9 1/2″ x 11″
Column Thickness of Steel 6mm
Base Of Lift 17 1/2″ x 21 1/2″
Motor/Electrical Requirement 220 volt single (1) phase.
A 30 amp breaker is recommended
Oil Requirement 3-5 Gallons AW32/AW46(NOT INCLUDED)
Adapter Heights 4 Each 2”, 3”, 6”
Arm Hole/Adapter Peg Size 1.5”
